测量精度高达0.05%,采样率最大10 kHz,创新评估元素,即窗口,阈值,梯形,包络曲线,可自由定义的数学运算,可监控两个同步过程,128个测量程序,智能信号采样,可编程I / O功能,以太网,USB,RS232,广泛的评估和统计分析,所有常用的传感器接口,可变现场总线接口,功能强大的PC软件
型号 | 9307 |
测量通道 | 6 |
一次可用通道 | 3 |
支持传感器类型 | 应变,压电,TTL等 |
测量精度 | |
支持总线类型 |
|
支持通讯接口类型 |
|
最多能保存程序数 | 128 |
评判时间 | 15ms |
显示 |
|
具体特点 |
|

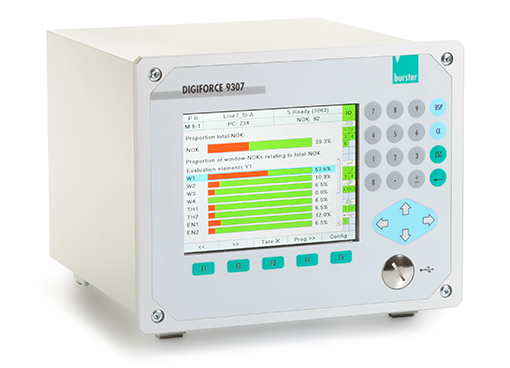

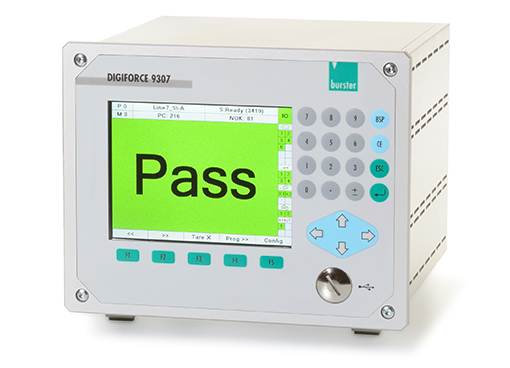

The DIGIFORCE® 9307 monitors processes in which precisely defined functional relationships between two or more measured quantities need to be demonstrated. These measured quantities are recorded synchronously during the manufacturing process or subsequent functional testing to produce a measurement curve, which is then assessed using graphical and mathematical evaluation techniques. After internal evaluation, the measurement curve and computed evaluation results are visualized on the color display and are also output at the external control interfaces. The processes in the controller are optimized by a powerful real-time operating system to achieve an extremely fast evaluation cycle: it typically takes just 15 ms to deliver the global OK or NOK evaluation result, which can then be analyzed by the higher-level controller.
In addition to the traditional evaluation windows with defined entry and exit sides, the DIGIFORCE® 9307 also offers thresholds, trapeziums of type X or Y and envelopes as graphical evaluation elements.Individual evaluation results from the graphical tools can then be combined by mathematical operations to provide even more analysis flexibility for a huge range of signal curves.
DIGIFORCE® has a wide range of process control applications, including monitoring processes such as joining, riveting or calking, or checking torque curves, for instance for hinges or high-quality rotary controls. Even complex signal/time curves (e.g. pressure curves, leaks etc.) can be monitored using the large choice of evaluation techniques.
Simultaneous recording of up to two Y variables (Y1 and Y2) with respect to a common X variable allows many applications to use one DIGIFORCE® controller to monitor two synchronous processes.
Alternatively, this feature can be used to evaluate an application with three process variables, for instance the force/displacement curve and associated current consumption of a lifting electromagnet. While DIGIFORCE® is used in many automated production areas, it is equally at home in the manual workstation, for instance to monitor force/displacement when using hand presses for assembly or for random spot-checking in goods inwards.
