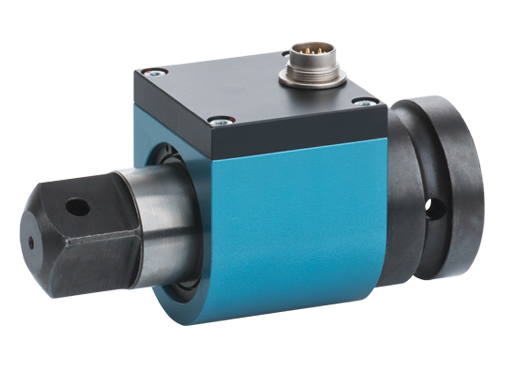

尺寸小,可靠,精度高,可旋转,可承受左右扭矩,可进行静态和动态测量,传递滑环
型号T | 86403, 86413, 86423 |
工作方式T | 旋转 |
量程选择T | 86403 0 … ± 1 Nm 0 … ± 2 Nm 0 … ± 5 Nm 0 … ± 12 Nm 0 … ± 25 Nm 0 … ± 63 Nm 0 … ± 160 Nm 0 … ± 500 Nm 0 … ± 1000 Nm 86413 0 … ± 1 Nm 0 … ± 2 Nm 0 … ± 5 Nm 0 … ± 10 Nm 0 … ± 20 Nm 0 … ± 50 Nm 0 … ± 100 Nm 0 … ± 200 Nm 0 … ± 500 Nm 86423 0 … ± 1 Nm 0 … ± 2 Nm 0 … ± 5 Nm 0 … ± 10 Nm 0 … ± 20 Nm |
信号输出T | 86403 & 86413 0.5 mV/V 2 mV/V 取决于量程范围 86423 0.5 mV/V 1 mV/V 2 mV/V 取决于量程范围 |
第二量程比例T | No |
机械连接T | 86403 Internal and external square acc. to DIN 3121 86413 Keyways on both shaft ends 86423 Hexagon head and socket 1/4'' acc. to DIN 3126 |
保护等级T | IP50 |
使用温度T | -10 ... +60 °C |
集成速度测量T | 86403 & 86413 可选配 86423 No |
集成角度测量T | 86403 & 86413 可选配 86423 No |
编码器增量T | 360个脉冲转 |
最大转速T | ≤ 2000 rpm |
信号传输方式T | 滑环传动系统 |
具体特征T |
|
Precise, reliable measurements of both static and dynamic torques in either direction can be made with this range of sensors.
This opens a wide range of possible applications to the user. These torque sensors are standard equipment in a wide range of industrial automation, quality control and automotive components industry applications, as well as in laboratories.
Typical applications:
Screwing technology
Measuring the drag torque of motors and pumps
Strain gauges are mounted on the torsion shaft of the sensor element, itself made of steel, connected to form a full bridge. The electrical power excitation for the wire strain gauge full bridge and the transmission of the measured signal is provided through a high-quality slip-ring system between the stator and the rotor.
For a clockwise torque, the measurement signal is positive, and it is negative for a counterclockwise torque.
The sensor for the optionally available angle measurement for the square shaft versions is fitted with an additional pulse-generating disk.
With the aid of a second encoder track, displaced by 90°, allows the subsequent evaluation units to perform 4-fold edge evaluation. This allows significantly improved resolution to be achieved. The offset track makes it possible to detect the direction of the rotation.
The characteristic parameters for the sensors are standardized in order to reduce the effort required to check a connected amplifier or to exchange the sensor.
